Zhongyang Sams Plate Bending Rolls


China W11S-12x4000 Plate Bending Roll

NHRYL208:

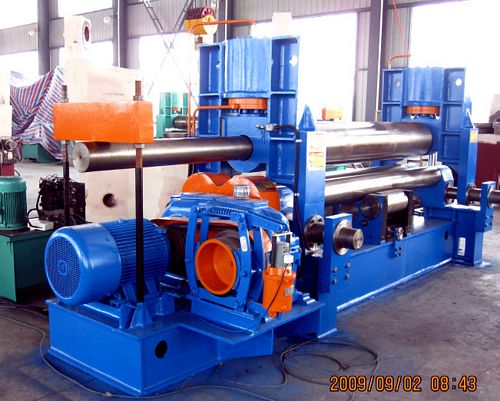

New, China W11S-12x4000 Plate Bending Roll

  • Rolling thickness 12mm x 4000mm (at 1000 dia)
  • Prebending thickness 8mm x 4000mm (at 1000 dia)
  • Type: upper roller NC controlled (economic NC)
  • Top roll pressure 130T
  • Plate width 4000mm
  • Top roll diameter 350mm
  • Bottom rolls diameter 180mm
  • Length of working rolls 4100mm
  • Distance between bottom rolls center-to-center 300mm
  • Roiling speed about: 3.5 m/min
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • No. of supporting roller 1 group, 4 rollers per group
  • Top roll pressure speed: about 270 mm/min
  • Main motor 15 Kw
  • Hydraulic motor 5.5 Kw
  • Motor for shifting 4 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
