Zhongyang Sams Plate Bending Rolls

China W11S-12x2000 Plate Bending Roll

More Photos...
HRYL2475-2 hryl2475-2_a.jpg hryl2475-2_j.jpg hryl2475-2_k.jpg hryl2475-2_p.jpg
hryl2475-2_q.jpg hryl2475-2_s.jpg hryl2475-2_t.jpg

Notice Zhongyang is selling this machine at a very Special Nett Price.
Special Nett Price: MYR 62,000.00 ex-works Ipoh, Malaysia
Strictly AS IS WHERE IS Condition
(Please add GST 6.0% if purchase is within Malaysia)

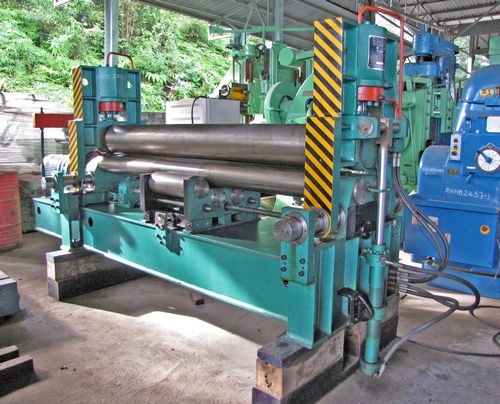

New, China W11S-12x2000 Plate Bending Roll

  • Rolling Thickness 12 mm x 2000mm (at 400 dia)
  • Prebending Thickness 10 mm x 2000mm (at 400 dia)
  • Top Roll Pressure 65 Tons
  • Plate Width 2000 mm
  • Roll Length 2050 mm
  • Top Roll Diameter 250 mm
  • Bottom Rolls Diameter 145 mm
  • Distance between bottom rolls center-to-center 200mm
  • Coiling speed ≈ 4 m/min
  • Capacity <= 245 Mpa
  • Main Motor 5.5 kW
  • Hydraulic Motor 4 kW
  • Motor for Shifting 1.5 kW
  • Overall Dimensions: 4,572 mm (L) x 1,295 mm (W) x 2,032 mm (H)
  • Weight approximately 5.0 ton

Video for this machine is available as follows:
Video for HRYL2475-2

Sales Enquiry Price Request

We are the supplier, seller and owner of the above new machine.
The machine is for sale EX-STOCK and is currently located in our warehouse in Ipoh, Malaysia.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
