China W11S-80x2500 Plate Bending Roll

NHRYL199:

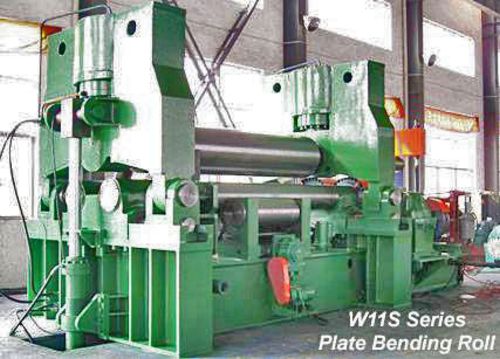

New, China W11S-80x2500 Plate Bending Roll

  • Rolling thickness 2500mm x 80mm (at 3000 dia)
  • Prebending thickness 2500mm x 70mm (at 3000 dia)
  • Top roll pressure 930 tonnes
  • Top roll diameter 740mm
  • Bottom rolls diameter 440mm
  • Distance between bottom rolls centrer-to-center 880mm
  • Plate width 2500mm
  • Length of working rolls 2600mm
  • Coiling speed ≈ 3.5 m/min
  • Capacity <=245 Mpa
  • Upper roller pressure speed: about 120 mm/min
  • Supporting rollers: 4 rollers/group, 1 group
  • Main motor 90 kW
  • Hydraulic motor 37 kW
  • Motor for shifting 18.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
