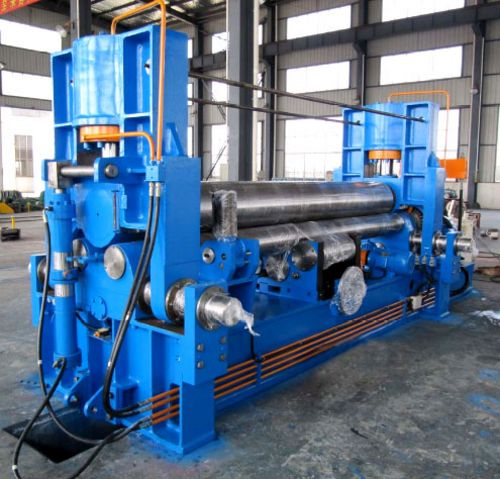

China W11S-10x2500 Plate Bending Roll

NHRYL196:

New, China W11S-10x2500 Plate Bending Roll

  • Rolling thickness 10mm x 2500mm (at 650 dia)
  • Prebending thickness 8mm x 2500mm (at 650 dia)
  • Top roll pressure 55 tons
  • Top roll diameter 255mm
  • Bottom rolls diameter 145mm
  • Distance between bottom rolls center-to-center 200mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Plate width 2500mm
  • Length of working rolls 2600mm
  • Coiling speed ≈ 3.5 m/min
  • Upper roller pressure speed ≈ 120 mm/min
  • No. of supporting roller: 1 group, 4 rollers/group
  • Main motor 5.5 kW
  • Hydraulic motor 4 kW
  • Moving motor 0.75 Kw
  • Overall Dimensions: 3,700 mm (L) x 1,500 mm (W) x 1,600 mm (H)
  • Weight approximately 5.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
