China W11S-25x2000 Roll Plate Bending Machine

NHRYL184:

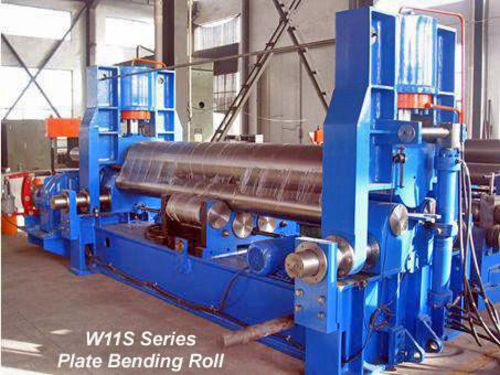

New, China W11S-25x2000 Roll Plate Bending Machine

  • Rolling thickness 25mm x 2000mm (at dia 750mm)
  • Prebending thickness 20mm x 2000mm (at dia 750mm)
  • Type: Top roll NC controlled (Economic NC)
  • Top roll pressure 130 tons
  • Top roll diameter 330mm
  • Bottom rolls diameter 180mm
  • Distance between bottom rolls center-to-center 300mm
  • Width of straight ends at full loading capacity ≤2.5 x plate thickness
  • Plate width 2000mm
  • Length of working rolls 2100mm
  • No. of supporting roller: 1 group/4 rollers per group
  • Coiling speed: about 3.5 m/min
  • Top roll pressure speed: about 270 mm/min
  • Main motor 18.5 Kw
  • Hydraulic motor 5.5 Kw
  • Moving motor 2.2 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
