Zhongyang Sams Plate Bending Rolls

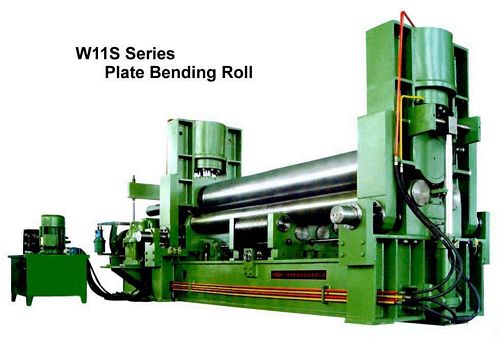

China W11S-85x3000 Plate Bending Roll


New, China W11S-85x3000 Plate Bending Roll

  • Rolling thickness 80mm x 3000mm (at 3200 dia.)
  • Prebending thickness 70mm x 3000mm (at 3200 dia.)
  • Top Roll Pressure 1150 Ton
  • Plate Width 3000 mm
  • Top Roll Diameter 800 mm
  • Bottom Rolls Diameter 480 mm
  • Distance between bottom rolls center-to-center 920mm
  • Length of working rolls 3100mm
  • Coiling speed ≈ 3.5 m/min
  • Capacity <=245 Mpa
  • Main Motor 110 kW
  • Hydraulic Motor 45 kW
  • Motor for Shifting 18.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
