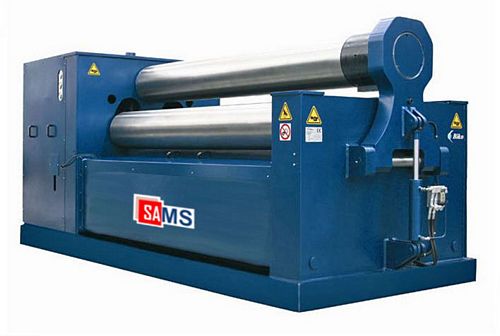

New, Sams B3 31105 Synchronized 3-Roll Double Pinch Plate Bending Machine
- Length of rolls 3050mm
- Rolling capacity (cold) 165mm (at dia 5000mm)
- Prebending capacity (cold) 145mm (at dia 5000mm)
- Rolling capacity (cold) 145mm (at dia 1300mm)
- Prebending capacity (cold) 135mm (at dia 1300mm)
- Cone capacity by continuous rolling = 60% of prebending thickness
- Cone capacity by pressing = 100% of prebending thickness
- No. of rolls: 3
- Top roll diameter 1050mm
- Bottom rolls diameter 930mm
- Geometry: PLANETARY
- Powered driving rolls: 3 (directly splined on the roll shaft)
- Surface speed: automatic
- Rolling speed 5 mt/min
- Rolls movement adjustment: hydraulic
- Main motor ES 300 HP
- Weight approximately 195 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
