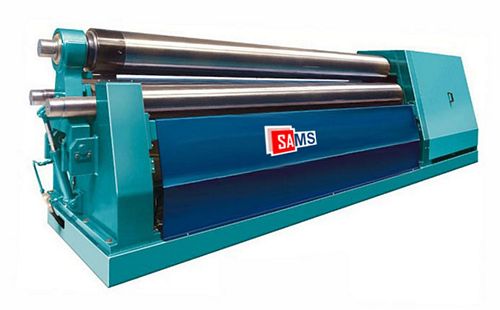

Sams B3 2628 3-Rolls Double Pinch Plate Bending Machine

NHRBK016:

New, Sams B3 2628 3-Rolls Double Pinch Plate Bending Machine

  • Length of rolls 2500mm
  • Rolling capacity (cold) 19mm (at diameter 1425mm)
  • Prebending capacity (cold) 15mm (at diameter 1425mm)
  • Rolling capacity (cold) 15mm (at diameter 370mm)
  • Prebending capacity (cold) 11mm (at diameter 370mm)
  • Yield strength 260 N/mm2
  • Cone capacity by continuous rolling = 60% of prebending thickness
  • Cone capacity by pressing = 100% of prebending thickness
  • Top roll diameter 285mm
  • Bottom rolls diameter 265mm
  • No. of rolls: 3
  • Powered driving rolls: 3
  • Hydraulic motors: 3 (directly splined on the rolls shaft)
  • Surface speed: automatic by hydraulic unit
  • Double rolling speed 2-5 mt/min
  • Rolls movement adjustment: hydraulic
  • Main motor 20 hp
  • Lubrication system: centralized
  • Overall Dimensions: 5,000 mm (L) x 1,200 mm (W) x 1,700 mm (H)
  • Weight approximately 7.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine, bending rollers machine, bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
