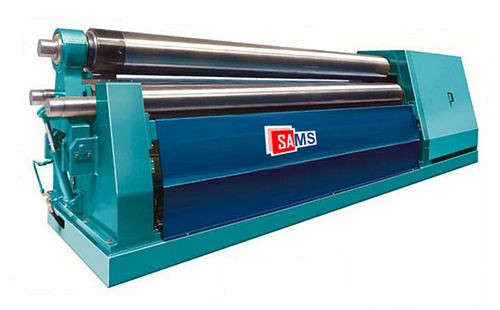

New, Sams B3 2028 3-Roll Plate Bending Machine
- Length of rolls 2000mm
- Rolling capacity (cold) 23mm (at dia 1425mm)
- Prebending capacity (cold) 18mm (at dia 1425mm)
- Yield strength 260N/mm2
- Rolling capacity (cold) 16mm (at dia 370mm)
- Prebending capacity (cold) 15mm (at dia 370mm)
- Cone capacity by continuous rolling: 60% prebending thickness
- Cone capacity by pressing: 100% prebending thickness
- Top roll diameter 285mm
- Bottom rolls diameter 265mm
- Powered driving rolls 3
- Surface speed: automatic by hydraulic unit
- Rolling speed 5 mt/min
- Main motor ES 20 HP
- Overall Dimensions: 4,500 mm (L) x 1,200 mm (W) x 1,700 mm (H)
- Weight approximately 6.0 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
