Welding Positioner

NWPWN023:

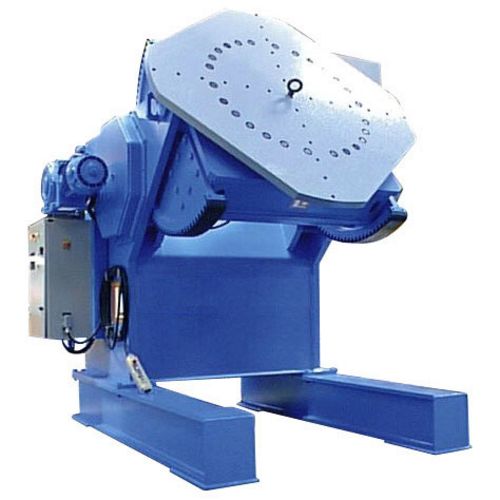

New, China ZHB-10 Welding Positioner

Rated loading 1000 kg
Workable revolve speed 0.05-0.5 m/min
Worktable tilt speed 0.67 m/min
Worktable size diameter 1000mm
Rotation motor 1.1 kw
Tilting motor 2.2 kw
Max eccentricity 200mm
Max eccentricity distance 250mm
Max revolve diameter at 90° 2000mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used welding positioner (welding positioner, positioners), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
