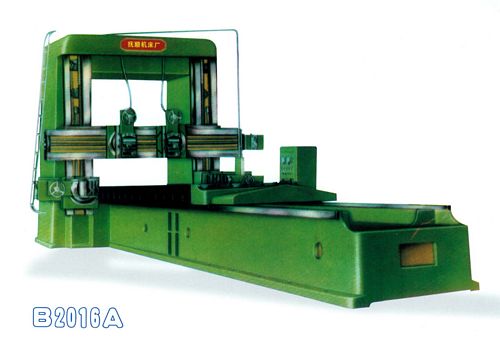

China B2016A Plano Milling Machine

NSMLM001:

New, China B2016A Plano Milling Machine

  • Table area (WxL): 1600 x 6000mm
  • Distance between two columns 1700mm
  • Forward speed (stepless): 8 - 80; 4 - 40 m/min
  • No. of T slots 7 pieces
  • Elevating speed of crossrail 570 mm/min
  • Crossrail toolhead feed range of railhead: Horizontal 0.2 - 3.35; 0.15 - 1.3 mm                                                                          Vertical 3.5 - 20; 1.25 - 7.5 mm
  • Crossrail toolhead rapid traverse speed of side head: 1600 mm/min; 600 mm/min
  • Side toolhead feed range of railhead 0.2 - 2; 2 - 11.5 mm
  • Side toolhead rapid traverse speed of side head 850 mm/min
  • Max section of cutting tool (HxW): 60 x 60mm
  • Max workpiece (LxWxH): 6000 x 1600 x 1250 mm
  • Max workpiece weight 15000kg
  • Main motor 60kW
  • Overall Dimensions: 13,000 mm (L) x 4,500 mm (W) x 3,650 mm (H)
  • Weight approximately 46 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used planomiller (plano miller, planomill, planer mills, planer miller, planing mills, plano mill, plano milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
