Slotter

NSLAM001:

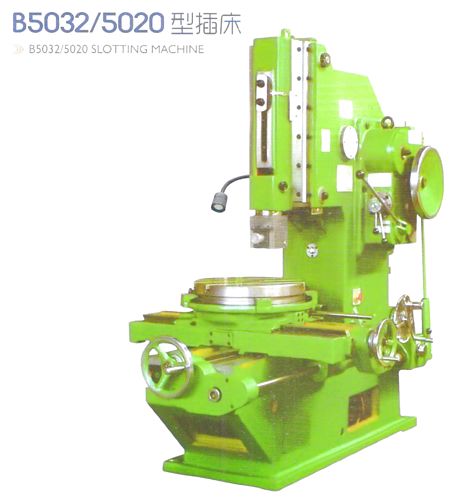

New, China B5020 Slotting Machine

• Max Slotting Stroke 200mm
• Table Diameter 500mm
• Ram Stroke 220mm
• Ram Movement 32/50/80/125 strokes/min
• Ram Tilt 0-8 degrees
• Max Vertical Ram Adjustment 230mm
• Throat Depth 485mm
• Distance Between Work Surface to Lower Carriage 320mm
• Table Max Longitudinal Movement 500mm
• Table Max Lateral Movement 500mm
• Table Swivel 360 degrees
• Table Aspect Motorized Feed Range 0.08-1.21mm
• Table Rotation Feed Range 0.052-0.783mm
• Motor Power 3kW
• Motor Speed (calculated value) 1430 RPM
• Overall Dimensions: 1,916 mm (L) x 1,305 mm (W) x 1,995 mm (H)
• Weight approximately 2.2 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

Not sure of what types of machine you need to do a certain job? Contact us now. We can help.
