Cylindrical Grinding Machine

NRCSG004:

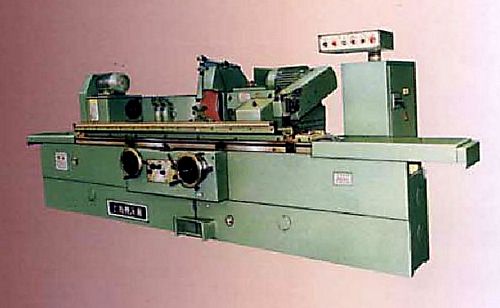

New, China M1332B/2000 Cylindrical Grinding Machine

Grinding capacity 2000mm
Min grinding diameter with steady rest Ø10mm
Max grinding diameter with steady rest Ø60mm
Min grinding diameter without steady rest Ø8mm
Max grinding diameter without steady rest Ø320mm
Grinding length 2000mm
Max workpiece weight 150 kg
Center-line height 180mm
Distance between centers 2000mm
Workhead spindle speed (50 Hz) 26, 90, 130, 52, 180, 260 r/min
Wheel dimensions (O.D x W x I.D): Ø600 x 75 x Ø305
Wheel velocity 35 m/s
Wheel spindle speed 1130 r/min
Wheelhead displacement per rev. of handwheel (coarse/fine): 2mm/0.5mm
Wheelhead displacement per div. of handwheel (coarse/fine): 0.01mm/0.0025mm
Hydraulic pump pressure 2.5 Mpa
Total electric power 13.45 kw

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cylindrical grinding machine (cylindrical grinder, internal grinder, external grinder, universal grinder, cylindrical grinding machine, universal grinding machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
