Pipe Bending Machine

NOUSC002:

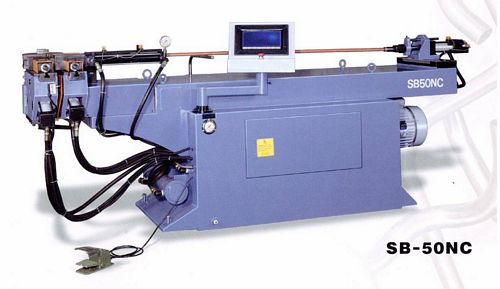

New, Taiwan SB-50NC Hydraulic Rotary Bender

NC Control with Touch Screen
Max Tube OD (mild steel) 50.8 x 3 x CLR 1.5 D
Max Tube OD (mild steel) 44.45mm x 4.8mm x CLR 1.5 D
Max Tube OD (stainless steel) 44.45mm x 3mm x CLR 1.5 D
Max Rectangular Tube (mild steel) 50mm x 20mm x 2.3mm thickness
Max Tube Length with Mandrel 2600mm
Max Bending Radius 250mm
Max Bending Angle 185 degrees
Max Hydraulic Pressure 140 kg/cm^2
Max Power for Hydraulic System 10 HP
Overall Dimensions: 3,800 mm (L) x 850 mm (W) x 1,030 mm (H)
Weight approximately 1.3 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
