Pipe Bending Machine

NOUDX017:

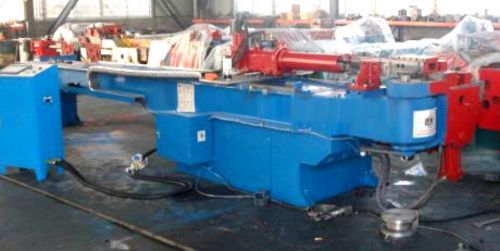

New, China W28K-219CNC Pipe Bender

Max bend x thickness: Ø219 x 18mm
Min bend Ø76
Bending radius R300-R1000 mm
Feeding trolley following stroke 9000mm
Min pipe end length 800mm
Mold center height 220mm
Machine working height 1700mm
Bend speed C shaft 0-5 r/min
Clamping set speed B shaft 0-5 r/min
Feeding trolley walking speed Y shaft 0-10 m/min
Speed series: variable speed
Repeat precision: C shaft ±0.2°, Y shaft ±0.2mm, B shaft ±0.2°
Motor 37 kw
Hydraulic system working pressure <=21 MPA
Full tank capacity 4000 L
Overall Dimensions: 12,000 mm (L) x 2,900 mm (W) x 2,000 mm (H)
Weight approximately 35 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
