Sunshine Innovation Sams Pipe Bending Machine

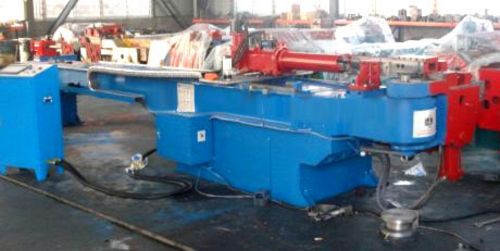

China W28K-168CNC Pipe Bender

NOUDX016:

New, China W28K-168CNC Pipe Bender

  • Max bend x thickness: Ø168 x 12mm
  • Min bend Ø60mm
  • Bending radius R200-R800 mm
  • Feeding trolley following stroke 9000mm
  • Min pipe end length 500mm
  • Mold center height 160mm
  • Machine working height 1600mm
  • Bend speed C shaft 0-10 r/min
  • Clamping set speed B shaft 0-10 r/min
  • Feeding trolley walking speed Y shaft 0-25 m/min
  • Speed series: variable speed
  • Repeat precision: C shaft ±0.1°, Y shaft ±0.1mm, B shaft ±0.1°
  • Motor 22 kw
  • Hydraulic system working pressure <=14 MPA
  • Full tank capacity 3000 L
  • Overall Dimensions: 8,000 mm (L) x 2,200 mm (W) x 1,700 mm (H)
  • Weight approximately 18 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
