Pipe Bending Machine

NOUDX013:

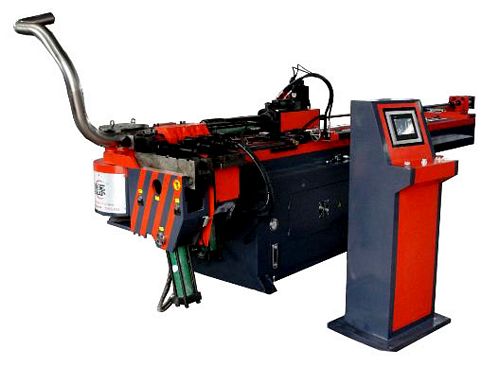

New, China W28K-76CNC Pipe Bender

• Max rotary distance 30,000 N
• Max bend OD x thickness: Ø76 x 6mm
• Min bend OD Ø6mm
• Bending radius R30-R400 mm
• Max bend angle 195°
• Feeding trolley following stroke 6000mm
• Min pipe end length 300mm
• Mold center height 60mm
• Machine working height 2500mm
• Bend speed C shaft 0-5 r/min
• Clamping set speed B shaft 0-10 r/min
• Feeding trolley walking speed Y shaft 0-30 m/min
• Speed series: variable speed
• Repeat precision: C shaft ±0.1°, Y shaft ±0.1mm, B shaft ±0.1°
• Angle pre-set: 50 types
• Motor 11 kw
• Hydraulic system working pressure <=12 MPA
• Full tank capacity 3000 L
• Overall Dimensions: 8,000 mm (L) x 1,600 mm (W) x 1,500 mm (H)
• Weight approximately 6.0 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

We will source worldwide for machinery if we do not carry machinery to your required capacity.
