Pipe Bending Machine

NOUDX006:

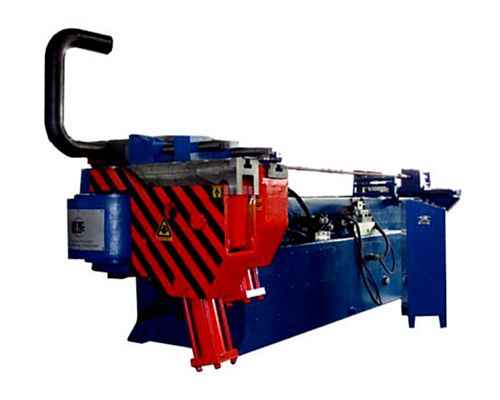

New, China W27YPC-121x10 PLC Hydraulic Tube Bender

Max torque 120,000 N.m
Max OD pipe x thickness: Ø121 x 10mm
Min bend OD Ø38mm
Bending radius R100-R1200 mm
Max bending angle 195°
Bending speed 1.25 r/min
Gyration speed 3.27 r/min
No. of bending angles 16
Motor 15 kw; 1450 r/min
Oil pressure flowing speed 55 L/min
Oil working pressure 16 Mpa
Overall Dimensions: 5,500 mm (L) x 1,800 mm (W) x 1,800 mm (H)
Weight approximately 5.5 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
