Pipe Bending Machine

NOUDX003:

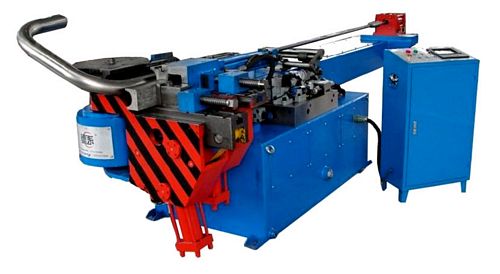

New, China W27YPC-76x6 PLC Hydraulic Tube Bender

Max torque 35,000 N.m
Max OD x thickness: Ø76 x 6mm
Min bend OD Ø10mm
Bending radius R40-400 mm
Max bending angle 195°
Bending speed 2.6 r/min
Gyration speed 5.0 r/min
No. of bending angles 16
Motor 7.5 kw; 1450 r/min
Oil pressure 16 Mpa
Oil flowing speed 35 L/min
Oil working pressure 10 Mpa
Overall Dimensions: 4,000 mm (L) x 1,500 mm (W) x 1,200 mm (H)

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pipe bending machine (pipe bender, tube bender, pipe bending machines, tube bending machines), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
