NOOHG005:

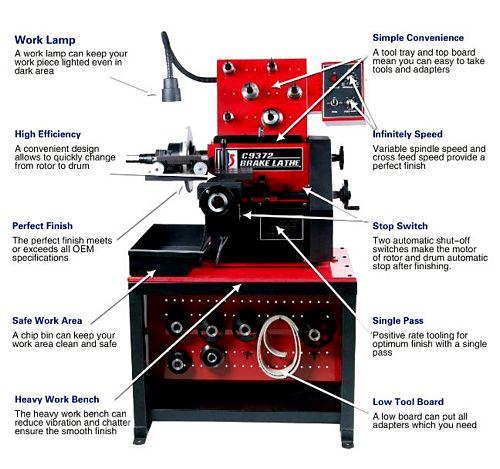

New, China C9372 Brake Lathe

Rotor diameter 102-610mm
Max rotor thickness 73mm
Drum diameter 152-711mm
Drum depth 229mm
Flywheel diameter 152-610mm
Spindle weight capacity (standard 1" arbor) 68 kg
Spindle speed 70-320 rpm
Feed rates (rotor & drum): 0-0.66mm
Feed rate per minute 64.5mm
Voltage 220V/1PH/50Hz
Overall Dimensions: 1,130 mm (L) x 720 mm (W) x 750 mm (H)
Weight approximately 300 kg

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used machinery, accessories (tools, accessories, special machinery), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
