Vertical Milling Machine

NMVEA015:

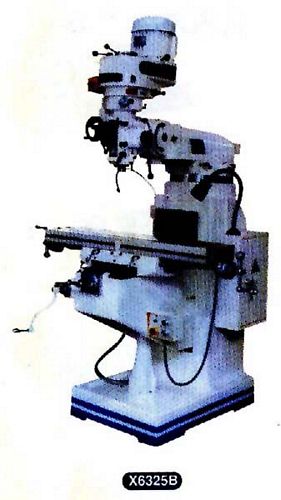

New, Taiwan X6325B - 10"x50" Turret Miller

Working table 10" x 50"
Longitudinal travel 810mm
Cross travel 400mm
Vertical travel 400mm
Spindle hole taper R8, ISO30 or ISO40
Spindle travel 127mm
Power dial feed 0.04mm, 0.08mm, 0.13mm
Spindle speed - variable speeds 60 - 4200, 16 speeds 80 - 5440
Spindle motor 2.25 kW / 3HP
Y-axis Rectangular guideway
Z-axis 55° swallow tail guideway
Structure of fore and after of the head flexible
Overall Dimensions: 1,730 mm (L) x 1,750 mm (W) x 2,100 mm (H)
Weight approximately 1.4 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
