Vertical Milling Machine

NMVEA005:

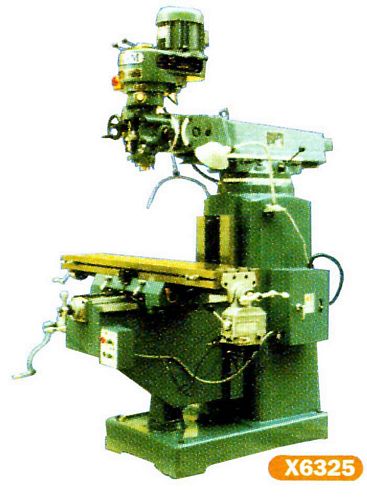

New, China X6325 (10"x54") Turret Vertical Miller

Working table 250mm x 1372mm
Longitudinal travel 914mm
Cross travel 405mm
Vertical travel 405mm
Ram travel 465mm
Spindle hole taper R8, ISO 30 or ISO 40
Spindle travel 127mm
Spindle power feed rate 0.04, 0.08, 0.15 mm/rev
Range of spindle speed: Variable speed change 60 - 4200 mm
16 steps ranging 80 - 5440 mm
Spindle motor 2.25 kW / 3 HP
Weight 1500 kgs

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
