Turret Milling Machine

NMTZC014:

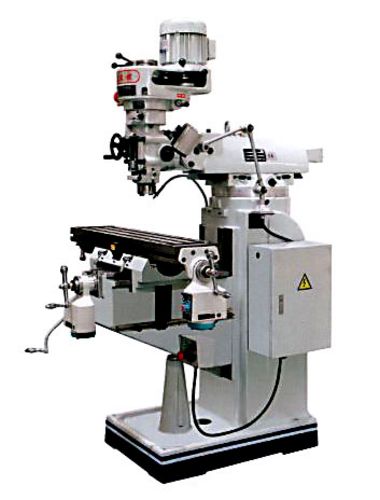

New, China X6323B (9" x 49") Turret Milling Machine

• Table size 230 x 1246mm
• Longitudinal travel 840mm
• Cross travel 305mm
• Vertical travel 400mm
• T-slot no. and size 3 x 16
• Ram travel 312mm
• Distance from spindle nose to table surface 0-415mm
• Spindle hole taper R8 (optional ISO30/40)
• Spindle travel 127mm
• Spindle speed (50 HZ) 65-4500 rpm; (60 HZ) 80-5440 rpm
• Auto quill feed 0.04 (0.0015")/0.08 (0.003")/0.15 (0.006") mm/r, 3 steps
• Spindle motor 2.25 kw / 3 HP
• Head swivel 90°
• Head tilting 45°
• Weight approximately 1.2 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you are considering inexpensive machinery, call us for China machinery.
