Turret Milling Machine

NMTZC009:

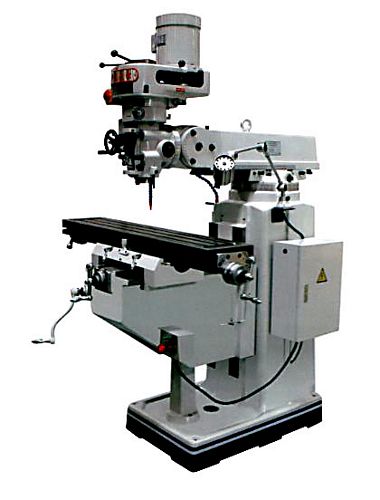

New, China X6325D (10" x 50") Turret Milling Machine

• Table size 254 x 1270mm
• Longitudinal travel 850mm
• Cross travel 420mm
• Vertical travel 420mm
• T-slot no. and size 3 x 16
• Ram travel 470mm
• Distance from spindle nose to table surface 0-405mm
• Spindle hole taper ISO40
• Spindle travel 127mm
• Spindle speed (50 HZ) 65-4500 rpm; (60 HZ) 80-5440 rpm
• Auto quill feed 0.04 (0.0015")/0.08 (0.003")/0.15 (0.006") mm/r, 3 steps
• Spindle motor 3.75 kw / 5 HP
• Head swivel 90°
• Head tilting 45°
• Weight approximately 1.6 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you are considering inexpensive machinery, call us for China machinery.
