Turret Milling Machine

NMTES016:

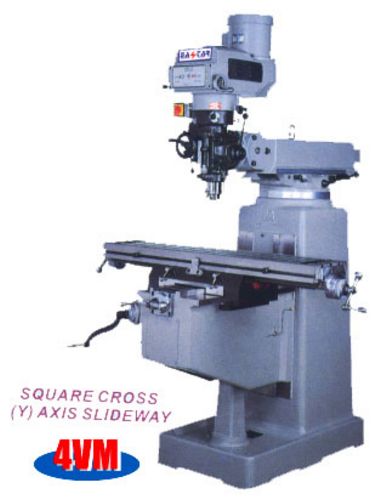

New, Taiwan 4VH Vertical Turret Milling Machine

Table size 250 x 1270mm
Longitudinal travel (X) manual 900mm
Longitudinal travel (X) with power feed 815mm
Cross travel (Y) 400mm
Knee travel (Z) 420mm
Distance from spindle center to column face 210 - 740 mm
Spindle speeds (60 Hz): 10 speeds 80 - 3600 RPM
Spindle taper ISO40
Over arm travel 530mm
Quill travel / diameter: 127mm / Ø100mm
Quill feeds 0.04 , 0.08, 0.15 mm/rev
Spindle motor 5 HP

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used turret milling machine (vertical turret miller), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
