Milling Machine

NMMZC002:

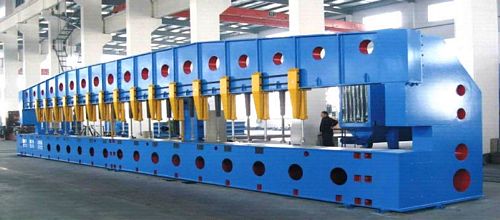

New, China SXBJ-9000 Edge Milling Machine

• With Dual Milling Heads
• Max Milling Length of Steel Plate 9000mm
• Max distance between machine bed and jack 160mm
• Max milling depth 10mm (at bevel)
• Milling angle +/- 45°
• Materials applicable: carbon steel
• Milling heads motors 5.5 kw
• Diameter of mitsubishi cutter: D=160mm
• Spindle speed 125 - 820  r/min
• Spindle adjustable value 60mm
• Milling efficiency 0.13 - 1 m/min
• Driven motor 2.2 kw
• Fast forward & backward speed: V=4 m/min
• Hydraulic motor 5.5kw
• Hydraulic pressure ≤3.5 mpa
• Best surface finish ≤50um
• Tolerance of bevel angle +/- 30°
• Tolerance of milling at flat ≤0.5mm
• Straightness accuracy of the rail span ≤0.5mm
• Straightness accuracy of upper & bottom rail ≤0.2mm
• Electric system: Schneider (Germany)

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

To promote confidence and to ensure quality of our machinery, we power test our machinery before delivery.
