CNC Milling Machine

NMCSY001:

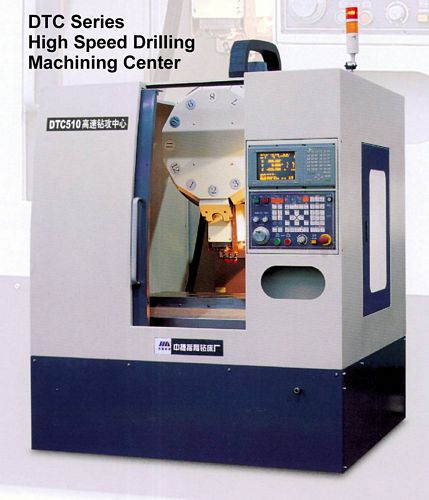

New, China Czech DTC450 High Speed Drilling Machining Center

• Table Size 600x360 mm
• Max Table Load 200 kg
• X / Y / Z Traverse 450 x 350 x 300 mm
• Distance Spindle Nose to Table 170-470 mm
• Spindle Taper BT30
• Spindle Speed 240-8000 RPM
• Max Spindle Torque 23.5 Nm
• Power of Main Motor 2.2/3.7 kW
• Spindle Diameter 45 mm
• Rapid Traverse: X & Y 36 m/min, Z 30 m/min
• Tool Magazine Type Circle (Armless)
• Tool Magazine Capacity 10
• Tool Magazine Max Tool Weight 3 kg
• Tool Magazine Max Tool Length 200 mm
• Tool Change Time 2 s
• Positioning Accuracy X, Y, Z: +/- 0.01/300 mm (JISB6330 Standard)
• Repeatability X, Y, Z: +/- 0.003 mm (JISB6330 Standard)
• Total Power Capacity 15 kVA
• CNC Control: Mitsubishi or Fanuc
• Weight approximately 2.4 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

Provide us with your required machine spec, and we will crossmatch with our database of machinery.
