Oil Country Lathe

NLOWP001:

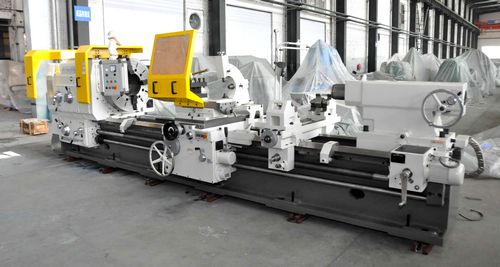

New, China CW6636/1500 Oil Country Lathe

Max swing over bed 1000mm
Distance between centres 1500mm
Max swing over carriage 640mm
Length to be machined 1300mm
Support capacity between centers 6 tons
Diameter of spindle bore 360mm
Min clamped diameter of chuck 240mm
Spindle speed 6.3 - 315 RPM with 18 steps
Metric thread and pitch range: 44 kinds; 1 to 120mm
Whitworth thread and range: 37 kinds; 30 to 1+1/8 teeth/in.
Modular thread and range: 46 kinds; 0.5 to 60mm
Radial thread and range: 46kinds; 0.5 to 60 D.P.
Rapid traverse: Saddle 3740 mm/min; Cross slide 1840 mm/min; Top slide 935 mm/min
Max travel of tool post 300mm
Max travel of cross slide 520mm
Diameter of tailstock sleeve 160mm
Travel of tailstock sleeve 300mm
Taper of tailstock sleeve Metric no. 80
Taper turning ±1:4
Max cutting length 300mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used oil country lathe (oil country lathe, big bore lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
