NLLYC044:

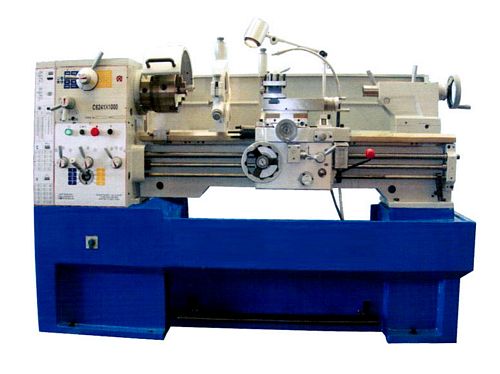

New, China CM6241/1500 High Speed Precision Light Duty Lathe

Between centers 1500mm
Swing over bed 410mm
Swing over cross slide 255mm
Swing in gap diameter x width: 580 x 190mm
Center height 205mm
Bed width 250mm
Max section cutting tool 20 x 20mm
Travel of cross slide 210mm, top slide 140mm
Spindle bore 52mm
Spindle morse taper in bore MT No. 6
Spindle speed 45-1800 rpm (16 steps)
Threads: Imperial 2-72 TPI (45 Nos); Metric 0.2-14mm (39 Nos); Module 0.3-3.5 MP (18 Nos); Diametric 8-44 DP (21 Nos)
Longitudinal feeds: Imperial 0.002-0.067 inch/rev (17 Nos); Metric 0.05-1.7 mm/rev (17 Nos)
Cross feeds: Imperial 0.001-0.0335 inch/rev (17 Nos); Metric 0.025-0.85 mm/rev (17 Nos)
Travel of tailstock quill 50mm
Tailstock quill diameter 120mm
Taper in tailstock quill MT No. 4
Overall Dimensions: 2,560 mm (L) x 900 mm (W) x 1,640 mm (H)
Weight approximately 1.8 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
