Lathe

NLLSY310:

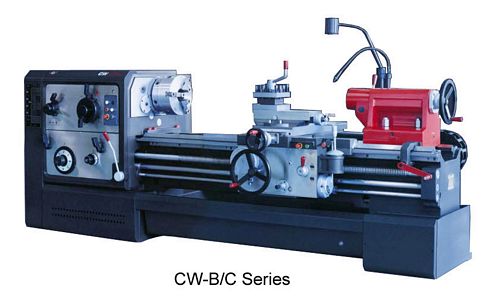

New, China CW61110B/3000 Straight Bed Lathe

Between centers 3000mm
Swing over bed 1100mm
Swing over saddle 800mm
Spindle bore and nose Ø104; D11
Taper in spindle nose and centre Ø120
Range of spindle speed 4.8-640 r/min (18 kinds)
Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
Range 1:1 = 0.1-1.52 mm/r
Range 16:1 = 1.6-24.3 mm/r
Range of fine feed with change gears 0.05-0.76 mm/r
Longitudinal and cross feed rate 1/2
Rapid traverse of carriage 4000 mm/min
Lead screw pitch 12 (Metric); 1/2"
Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
Max cross travel of lower slide 500mm
Max travel of top slide 200mm
Max travel of quill of tailstock 250mm
Taper of quill of tailstock Morse No. 5
Width and hardness of bed guideways 600mm; RC52
Main motor 11 or 15 kW

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
