NLLSY289:

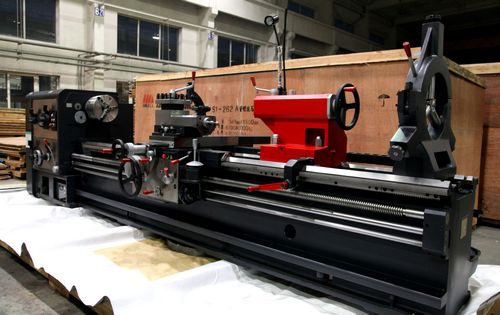

New, China CW6280C/11000 Gap Bed Lathe (New Design)

Between centers 11,000mm
Swing over bed 800mm
Swing over saddle 480mm
Swing of gap 1000mm
Width of gap 310mm
Spindle bore and nose Ø130; D11
Taper in spindle nose and centre Ø140; Morse No. 5
Range of spindle speed 5.4-720 r/min (18 kinds)
Range of longitudinal feed 0.06-24.3 mm/r (64 kinds)
Range 1:1 = 0.1-1.52 mm/r
Range 16:1 = 1.6-24.3 mm/r
Range of fine feed with change gears 0.06-0.912 mm/r
Longitudinal and cross feed rate 1/2
Rapid traverse of carriage 4000 mm/min
Lead screw pitch 12 (Metric); 1/2"
Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
Max cross travel of lower slide 500mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
