Lathe

NLLSY201:

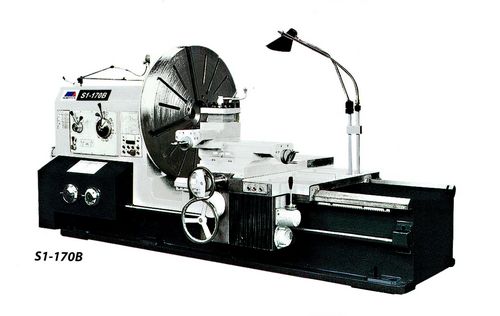

New, China S1-170B Gap Bed Lathe

Swing over bed 1400mm
Between centers 1500mm
Swing over saddle 800mm
Swing over gap 1600mm
Gap length 440mm
Spindle bore 100mm
Taper nose 1:20
Taper of spindle nose Metric 120
Type of spindle speed: (forward) 21 kinds; (reverse) 12 kinds
Range of spindle speeds: 2-200 r/min (forward); 2.24-178 r/min (reverse)
Range of feed 56 kinds
Longitudinal 0.06-7.2 mm; Cross 0.03-3.6 mm; Upper turret 0.015-1.8 mm
Max travel of gap 1500mm
Max cross travel of lower turret 980mm; middle turret 300mm; upper turret 200mm
Rapid travel of turret: Longitudinal 3740 mm/min; Cross 1870 mm/min
Middle turret 935 mm/min
Width of bed 1100mm
Max weight of workpiece 1500 kg
Main motor 22 kW

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
