Lathe

NLLSP005:

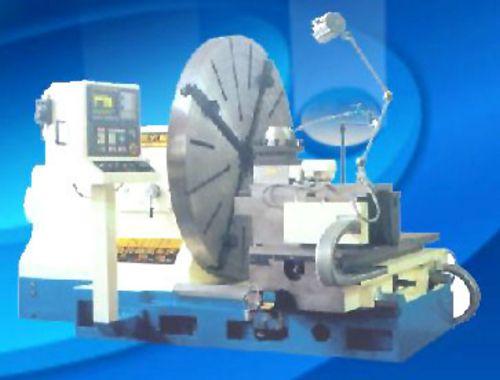

New, China C64250 Manual Facing Lathe

Swing over bed 2500mm
Swing over carriage 1680mm
Distance of saddle movement 1000mm
Max supporting capacity 4000 kg (gravity of part within 250mm)
Spindle nose ISO A2-20
Spindle bore 100mm
Diameter of chuck 2000mm
Spindle speed 1 - 125 rpm, off 4
Travel of cross slide 1024mm
Travel of longitudinal toolpost 400mm
Speeds of feed: longitudinal 0.8 - 25 mm/min, cross slide 1.6 - 50 mm/min
Common toolpost 4 positions
Size of tool 45 x 45mm
Main motor AC 37 kw
Coolant motor 1.5 kw
Lubricating motor 0.55 kw

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
