Lathe

NLLHG005:

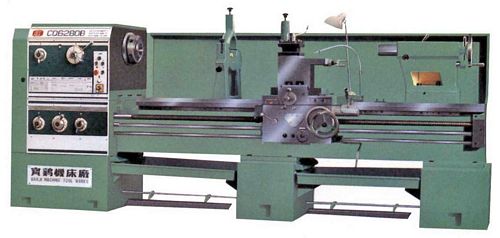

New, China CQ6280Bx3000 Gap Bed Lathe

Max. length of workpiece 3000mm
Swing over bed 800mm
Swing over cross slide 560mm
Swing in gap 1000mm
Length in gap 240mm
Width of bed 510mrn
Spindle nose ISO702/II No. 8 Camlock
Spindle bore 82mm dia.
Taper of spindle bore 90mm dia., 1:20
Range of spindle speeds 9 - 1400 rpm, 24 steps
Max. output of spindle torque 1400 N.m
Max. travel of compound rest 145mm
Max. travel of cross slide 320mm
Leadscrew pitch 12mm or 2TPl
Section of tool 25 x 25mm
Longitudinal quick moving speed 4.5 m/min, 50Hz; 5.4 m/min, 60Hz
Crosswise quick moving speed 1.9 m/min, 50Hz; 2.3 min, 60Hz
Longitudinal feeds range 93 kinds, 0.028 - 6.43 mm/rev
Cross feeds range 93 kinds, 0.012 - 2.37 mm/rev
Metric threads range 48 kinds, 0.5 - 224 rnm
Inch threads range 49 kinds, 72 - 1/8 TPI
Module threads range 42 kinds, 0.5 - 122 MP
Diametral threads range 45 kinds, 56 - 1/4 DP
Dia. of tailstock sleeve 75mm dia.

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
