Lathe

NLLHG002:

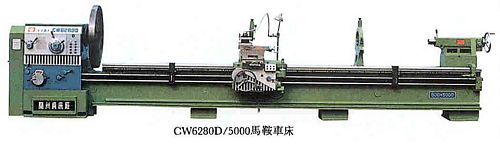

New, China CW6280D x 6000 Lanzhou Lathe

Maximum length of workpiece 6000mm
Swing over bed 800mm
Swing in gap 1000mm
Effective width of gap 300mm
Swing over carriage 520mm
Range of spindle speeds 18 steps, 6 - 800 rpm
Taper hole of spindle 120mm
Diameter of spindle thru hole 105mm
Longitudinal feeds (72) 0.1 - 24mm
Transverse feeds (72) 0.05 - 12mm
Metric threads (51) 1 - 240mm
Whitworth threads (27) 14 - 1 T.P.I.
Module threads (53) 0.5 - 120mm
Diametral pitch threads (24) 28 - 1 D.P.
Morse taper of tailstock quill 6
Maximum travel of tailstock quill 300mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
