NLLGZ144:

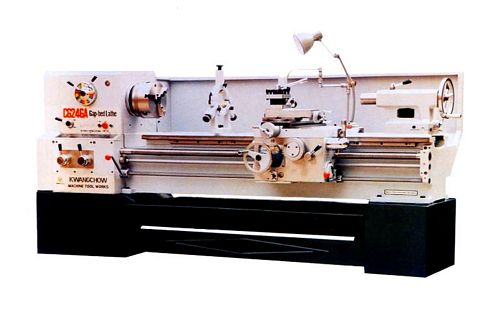

New, China C6266A1/2000 Gap Bed Lathe

Between centre 2000mm
Swing over bed 660mm
Swing over carriage 400mm
Swing in gap 900mm
Gap length 254mm
Centre height 330mm
Thru-hole diameter 80mm
Spindle speed: (50 Hz) 19-1600 r/min; (60 Hz) 20-1700 r/min (16 steps)
Cross travel 285mm; Compound rest slide travel 160mm
Max travel 180mm
Inside taper MT5
Main motor 5.5 / 7.5 kw
Threads range: Metric 3.6-80mm (26 kinds); Inch 80-1.3/4" n/I (35 kinds); Module 0.25-10mm (25 kinds); Diametric 160-3.1/2" DP (30 kinds)
Feeds change 138 steps
Longitudinal feed per spindle rev 0.04-2.16mm; Cross feed 0.02-1.08mm
Carriage rapid traverse 4000 mm/min
Overall Dimensions: 3,525 mm (L) x 1,110 mm (W) x 1,400 mm (H)
Weight approximately 2.7 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
