Lathe

NLLES082:

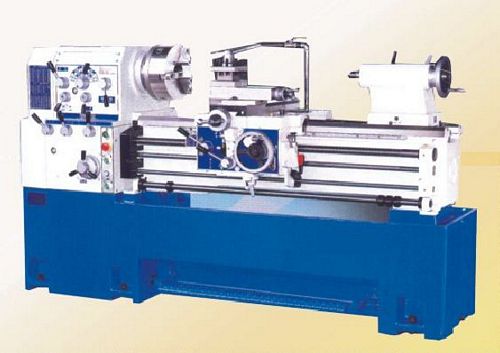

New, Taiwan S430x1500G High Speed Precision Lathe

Between centers 1500mm
Swing over bed 430mm
Swing over cross slide 240mm
Center height 215mm
Swing over gap 650mm
Bed width 300mm
Spindle nose ASA D1-6
Spindle bore 58mm
Taper of spindle bore MT6
Spindle speed 20 - 2000 RPM (12 steps)
Threads range: Inch 4 - 56 TPI, Metric P0.5 - P7
Longitudinal feeds 0.05 - 0.82 mm, Cross feeds 0.02 - 0.4 mm
Leadscrew diameter 35mm
Leadscrew pitch 4 TPI or 6mm
Taper of tail center MT4
Tail spindle travel 150mm / diameter 58mm
Compound rest travel 125mm
Cross slide travel 245mm
Main motor 5 HP
Coolant pump 1/8 HP
Overall Dimensions: 2,650 mm (L) x 810 mm (W) x 1,190 mm (H)
Weight approximately 2.1 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
