NLLEA007:

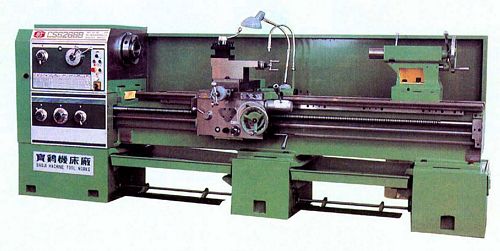

New, China CS6266B x 2000mm Gap Bed Lathe

Swing over bed 660mm
Swing over cross slide 420mm
Swing in gap 870mm
Length in gap 240mm
Spindle bore 82mm diameter
Taper of spindle bore diameter 90mm
Range of spindle speeds 9 - 1600 rpm, 24 steps
Maximum output of spindle torque 1500N.m
Maximum travel of compound rest 145mm
Maximum travel of cross slide 310mm
Spindle center to tool support 24mm
Longitudinal feeds range 93 kinds, 0.028 - 6.43 mm/rev
Cross feeds range 93 kinds, 0.012 - 2.37 mm/rev
Metric threads range 48 kinds, 0.5 - 224mm
Inch threads range 49 kinds, 72 - 1/8 TPI
Diameter of tailstock sleeve 75mm diameter
Morse taper of tailstock sleeve 150mm
Main motor: 10 HP, 3 phase, 50 Hz @ 1450 rpm; 60 Hz @ 1750mm
Overall Dimensions: 3,630 mm (L) x 1,050 mm (W) x 1,350 mm (H)
Weight approximately 2.8 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
