Lathe

NLLDM024:

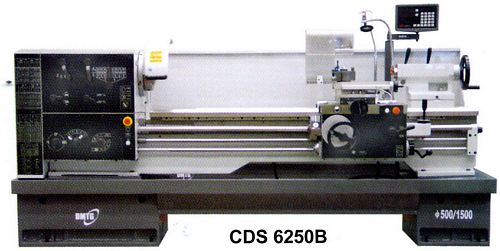

New, China CDS6250B/1500 High Speed Lathe

Swing over bed 500mm
Swing over saddle 290mm
Swing in gap 760mm
Between centres 1500mm
Spindle bore 82mm
Spindle nose D8
No. of spindle speed 16
Spindle speed ranges 26 - 2000 rpm
Max. spindle motor 7.5 kW (10 HP)
Width of bed 394mm
Cross slide travel - X axis 355mm
Travel of top slide 150mm
Max. dimension of tool shank 25 x 25mm
Imperial pitches 7 / 16 - 80 TPI
Diametric pitches 7 / 8 - 160 DP
Metric pitches 0.35 - 80mm
Module pitches 0.2 - 40 MOD
Tailstock quill diameter 75mm
Tailstock quill taper No. 5 MT
Tailstock quill travel 150mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
