NLLDM013:

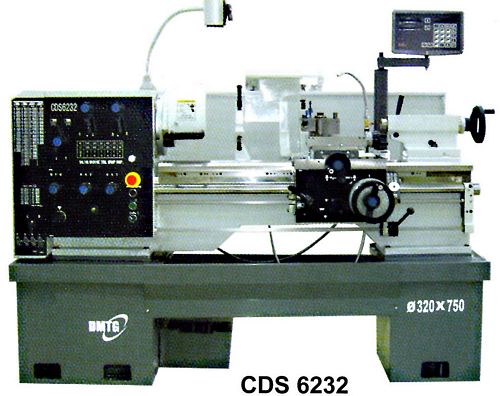

New, China CDS6232/500 High Speed Lathe

Swing over bed 320mm
Swing over saddle 180mm
Swing in gap 520mm
Between centres 500mm
Spindle bore 52mm
Taper of spindle bore MT6
Spindle nose D6
No. of spindle speed 12
Spindle speed ranges 59 - 2100 rpm
Max. spindle motor 2.2/3.3 kW (3/4.5 HP)
Width of bed 280mm
Cross slide travel - X axis 180mm
Travel of top slide 150mm
Max. dimension of tool shank 20 x 20mm
Imperial pitches 2 - 56 TPI
Diametric pitches 6 - 112 DP
Metric pitches 0.4 - 14mm
Module pitches 0.2 - 3.5 MOD
Tailstock quill diameter 50mm
Tailstock quill taper No. 4 MT
Tailstock quill travel 125mm
Overall dimensions: 1,610mm (L) x 935mm (H) x 1,200mm (W)
Net weight 980 kgs; Gross weight 1,330 kgs

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
