Lathe

NLLDD035:

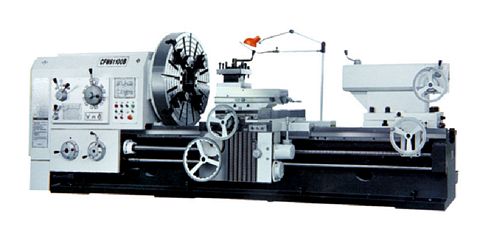

New, China CFW61100B/3000 Lathe

Between centers 3000mm
Swing over bed 1000mm
Swing over tool-post 615mm
Max turning length 2800mm
Span of guideway 755mm
Taper hole of spindle 1:20
Spindle bore 130mm
Ranges of spindle speed n(1): 3.15-315 r/min (forward); 3.5-278 r/min (reverse)
Ranges of spindle speed n(2); 2-200 r/min (forward); 2.24-178 r/min (reverse)
No. of forward turning speeds 21
No of reverse turning speeds 12
No. of feeds per revolution (longitudinal/transverse): 56
Max travel of cross tool-post 520mm; upper tool-post 300mm
Section of tool shank 45 x 45 mm
Diameter/travel of tailstock quill: 160/300 mm
Taper hole of tailstock quill Morse no. 6
Motor power 22 kw
Rapid motor 1.5 kw
Max weight between two centers 6000 kg
Overall Dimensions: 6,100 mm (L) x 2,150 mm (W) x 1,700 mm (H)
Weight approximately 11 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
