NLLDD020:

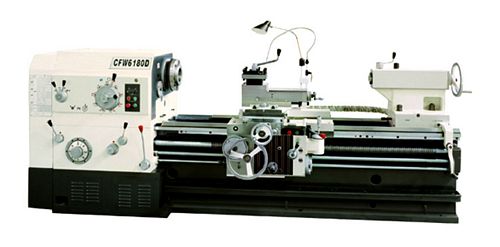

New, China CFW6280D/6000 Gap Bed Lathe

Between centers 6000mm
Swing over bed 800mm
Swing over tool-post 480mm
Max turning length 5850mm
Span of guideway 600mm
Taper hole of spindle 1:20/150
Spindle bore Ø140mm
Range of spindle speeds 5.4-720 r/min, off 18
No. of longitudinal and transverse feeds: 64 each
Range of longitudinal feed (1:1) 0.1-1.52 mm/r; (16:1) 1.6-24.3 mm/r
Cross to longitudinal feed rate 1/2
Pitch of lead screw 12mm
Range of threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
Rapid speed of carriage 4000 mm/min
Max travel of cross tool-post 450mm; upper tool post 200mm
Section of tool shank 32 x 32 mm
Diameter/travel of tailstock quill: Ø100/250 mm
Taper of tailstock quill Morse no. 6
Main motor 11 kw
Rapid motor 1.1 kw

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
