Lathe

NLLDD002:

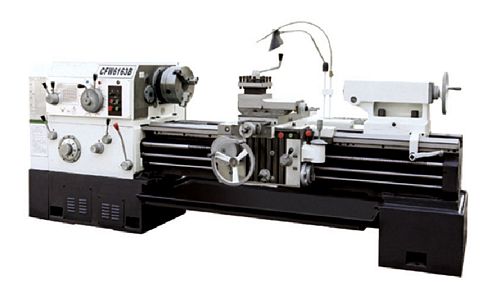

New, China CFW6263B/1000 Gap Bed Lathe

Between centers 1000mm
Swing over bed 630mm
Swing over tool-post 350mm
Swing over gap 800mm
Max turning length 550mm
Spindle bore Ø104mm
Taper of spindle nose 1:20
Taper of center Morse no. 5
Range of spindle speeds 7-1000 rpm, off 18
Longitudinal and cross feeds 64 kinds
Rapid speed of carriage 4000 mm/min
Max travel of cross tool-post 390mm; upper tool-post 200mm
Diameter/travel of tailstock quill: Ø100/250 mm
Taper of tailstock quill Morse no. 5
Main motor 11 kw
Rapid motor 1.1 kw
Span of guideway 550mm
Overall Dimensions: 3,160 mm (L) x 1,300 mm (W) x 1,575 mm (H)
Weight approximately 3.6 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
