Lathe

NLLAM050:

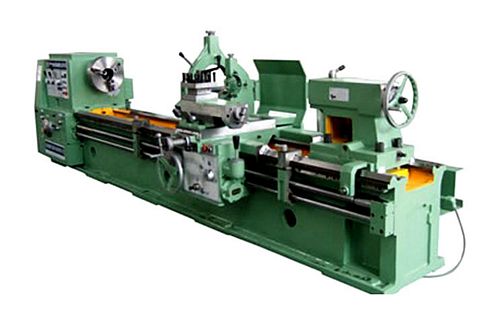

New, China CQW61100/2000 Gap Bed Lathe

Between centers 2000mm
Max swing over bed 1000mm
Max swing over saddle 710mm
Swing diameter x width over gap 1200 x 350mm
Width of bed 600mm
Max workpiece weight between centers 3 ton
Spindle bore diameter 100mm
Taper of spindle bore Metric #120
Range of spindle speed 6-800 r/min (2 grade/stepless)
Spindle head type C type 11
Longitudinal / transversal feeds range: 0.1-12.2 mm/r / 0.05-6.6 mm/r
Carriage rapid moving speed 3.8 m/min
Range of threads: Metric 1-120mm (47 kinds); Inch 28-1/2 TPI (25 kinds); Module 0.5-60mm (45 kinds); Pitch 28-1 TPI (29 kinds)
Tool post transverse travel 449mm
Top tool post travel 200mm
Diameter / travel of tailstock spindle: 120mm / 200mm
Taper of tailstock spindle Morse #6
Bed width 600mm
Main motor 15 kw

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
