Lathe

NLLAM007:

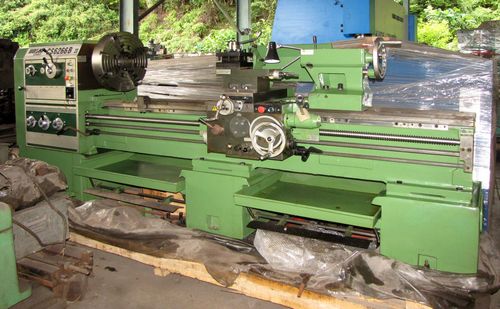

New, China CS6266Bx750 Gap-Bed Lathe

Between centres 750mm
Swing over bed 660mm
Swing over cross slide 420mm
Swing over gap 870mm
Gap width 240mm
Max. turning length 700mm
Spindle bore diameter 82mm
Spindle nose ISO 702/II No. 8 short cam lock type
Spindle speeds 9 - 1600 rpm, 24 steps
Travel of compound rest 145mm
Travel of cross slide 310mm
Tool section 25 x 25mm
X-axis feedrate (50 Hz) 1.9 m/min; (60 Hz) 2.3 m/min
Z-axis feedrate (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
Metric threads 48 kinds, 0.5 - 224 mm
Inch threads 49 kinds, 72 - 1/8 TPI

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
