CNC Lathe

NLCSY192:

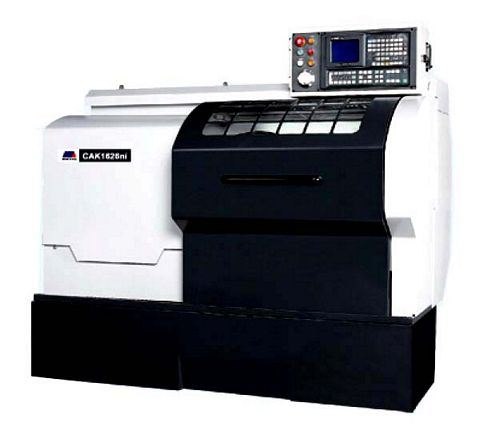

New, China CAK1626 Flat Bed CNC Lathe

Swing over bed 160mm
Swing diameter over gang tool 80mm
Max cutting diameter 160mm
Max machining length 260mm
Diameter of spindle bore 43mm
Spindle nose A2-4
Spindle speed 500-5000 r/min (Manual chuck 4000)
Tailstock quill diameter 60mm (optional)
Tailstock quill travel 120mm (optional)
Bore taper of tailstock Morse No. 4
X-axis max travel 180mm
Z-axis max travel 260mm
Rapid speed (X/Z) axis 6/10 m/min
X/Z axis repeatability 0.008/0.013 mm
Machining accuracy IT6-IT7
Main motor 4 kW
Total power 15 KVA
Overall Dimensions: 1,820 mm (L) x 1,400 mm (W) x 1,600 mm (H)
Weight approximately 1.6 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
