CNC Lathe

NLCSY125:

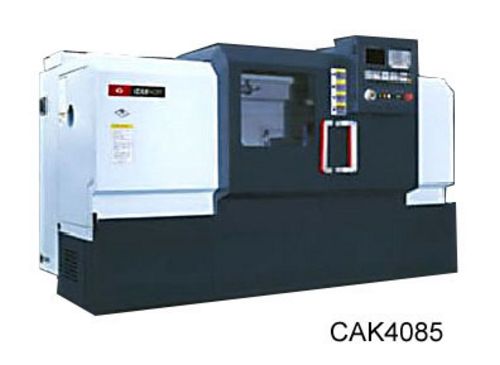

New, China CAK4085i Flat Bed CNC Lathe

Max swing over bed 400mm
Max swing over saddle 200mm
Max cutting over slide 200mm
Max turning length 850mm
Spindle bore Ø53
Spindle nose A6
Spindle speed 200-1600 rpm
Diameter / travel of tailstock quill 60mm / 140mm (optional)
Taper of tailstock quill Morse No. 4
Max travel of X axis 220mm
Max travel of Z axis 850mm
Rapid speed (X/Z axis) 6/10 mm
No. of tools in turret 4
Size of tool shank: 20 x 20 mm
Repeatability of X/Z axis 0.012 / 0.016
Work accuracy IT6 - IT7
Main motor 7.5 kW
Total power 15 KVA
Overall Dimensions: 2,470 mm (L) x 1,400 mm (W) x 1,600 mm (H)
Weight approximately 2.0 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
