Profile Cutting Machine

NKPDN012:

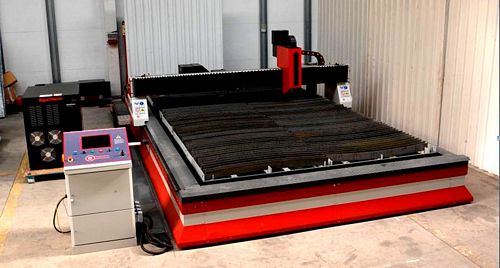

New, Sams Dener DNR-I 1530 Hypertherm HPR 260XD Plasma Cutting Machine

• Cutting area 1500 x 3000mm
• Mild steel: Dross free 32mm; Pierce 38mm; Edge Start 64mm
• Stainless steel: Pierce 32mm; Edge start 50mm
• Aluminium: Pierce 25mm; Edge start 50mm
• Strong and complete welded frame with high accuracy and high speed working technology
• All static and dynamic analyses have maiden welded construction
• Cutting table with pneumatic switch control fume extraction, with changeable grills
• High accuracy linear guiding system for all axis
• MITSUBISHI servo motor controlled axis
• Leading brand of plasma hypertherm generator
• Rack and pinions drive system for fast and accuracy work
• High mechanical accuracy up to ±0.02mm
• Shock prevention system for torch
• Automatic height control and automatic ignition torch system
• Hypertherm Microedge Pro windows based CNC control unit
• CAD/CAM software with plate stock management database
• Gas console

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
