Portable Facing Machine

NIFSN002:

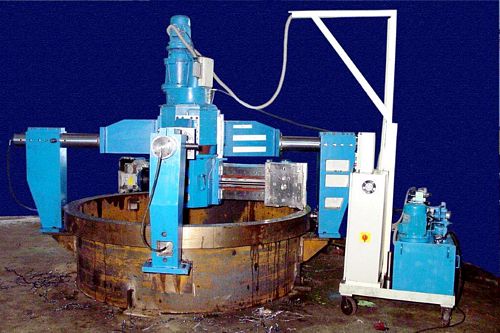

New, India FF2500 OD Clamping Portable Facing Machine

Facing range 1000-2500mm
Clamping range 1150-2100mm
Top table 650mm square
Drive 5 HP with Vector type VFD
Bearings (SKF/TIMKEN): 280 mm ID 2 No taper roller pre-loaded
Rotary speed 1-20 RPM, stepless
Gear box: hollow shaft worm reduction 80:1
Shaft: EN-24 forged
Body: grade 25 CI, stress relieved
Cross traverse X axis 750mm stroke
Feed range 10-200 mm/min
Motor 2 HP
Gear box: 1:50 worm reduction
Cross axis ram: grade CI, stress relieved
CI sliding surface & an independent automatic lubrication system for all rotating & sliding surfaces
Vertical traverse Y axis 100mm manual
Tool tilting ±45° manual
Cylinders: 4 No for OD clamping

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used portable facing machine (in-situ facing machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
