China J23-40W Adjustable Stroke Power Press

NHWEV013:

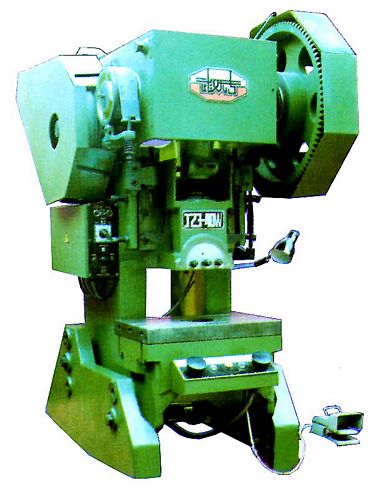

New, China J23-40W Adjustable Stroke Power Press

  • Open-Type Inclinable press
  • Nominal pressure 400 KN
  • Stroke 7mm
  • Adjustable stroke slide 0 - 80mm
  • Max closed height 280mm
  • Adjustment of closed height 65mm
  • Depth of throat 220mm
  • Number of strokes (SPM) 60
  • Surface of table: Fore to rear 420mm, Left to right 630mm, Diameter 240mm
  • Bottom surface of slide: Fore to rear 250mm, left to right 280mm
  • Clamp hole in slide: diameter 50mm, depth 70mm
  • Distance between uprights 300mm
  • Distance between table and guideways 385mm
  • Thickness of bolster plate 65mm
  • Maximum inclinable angle of press 20 degrees
  • Output of motor 5.5 kW
  • Weight 3000 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used power press (power press, eccentric press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
